General Electric UM30C |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 11 November 2007 |

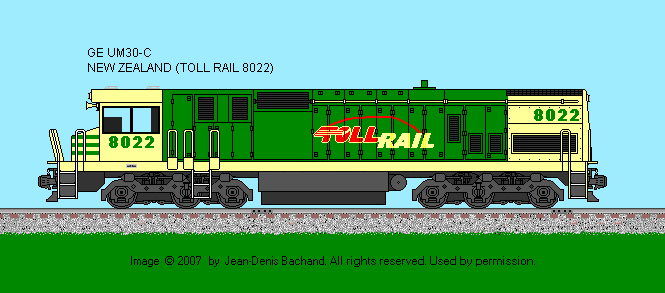

Drawing by: Jean-Denis Bachand |
| - |
| Engine Builder: Cooper Bessemer |
Engine: 4-cycle Model FDL-12T |
| Bore & Stroke |
9" X 10.5" |
| RPM (Maximum / Minimum) |
1050 / 400 |
| Main Generator: GE - GTA-11 |
Horsepower: 3000 |
| Gear Ratio: 93:18 |
Speed: 64 mph |
| 6-Wheel |
Configuration: C-C |
| Traction Motor Blowers: Mech. |
Number: 2 |
| Weight: 210,000 lbs |
Traction Motors: GE 761 (Four) |
| Tractive Effort (starting) 79,200 lbs @ 30% |
Tractive Effort (continuous): 59,790 lbs @ 18 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GE GY27 |
Alternator: GMG-146 |
| Air Brake: Westinghouse |
Model: 26L/26F |
| Air Compressor: Westinghouse |
Model: 3CDC (and Phase 2: 3CDC |
| Quantity Built: Unknown
|
Dates: 1982 to Present |
| - |
- |
| Exterior Dimensions
| UM30C |
| Total Length |
55'-06" (59'-06") |
| Wheel Diameter |
36" |
| Truck Wheel Base |
11'-03.5" |
| Height to Hood Top |
12'-01.5" |
| Height to Top Cab |
11'-11.5" |
| Cab Width |
9'-00" |
| Hood Width |
8'-11" |
| Top of Walkway |
8'-06" |
| Walkway Width |
4'-00" |
| Center Bolster |
31'-11" |
| Distance between Truck Centers |
43'-03.5" |
| Leading Edge Front Truck to Front Pilot |
5'-04.5" |
| Trailing Edge Rear Truck to Rear Pilot |
2'-09.5" |
| Leading Edge Front Truck to Trailing Edge Rear Truck |
39'-11" |
| Minimum Turning Radious |
23 degrees |
| -
| - |
| Fuel Oil: 1200
| Lubricating Oil: 320 |
| Engine Cooling Water: 200
| Sand Capacity: 18 cu. ft. |
| Options: Wheelslip Control |
